PRECAST DETAILING

SOFTWARE: TEKLA STRUCTURES, TEKLA MODEL SHARING, DLUBAL RFEM

PROJECT INFORMATION

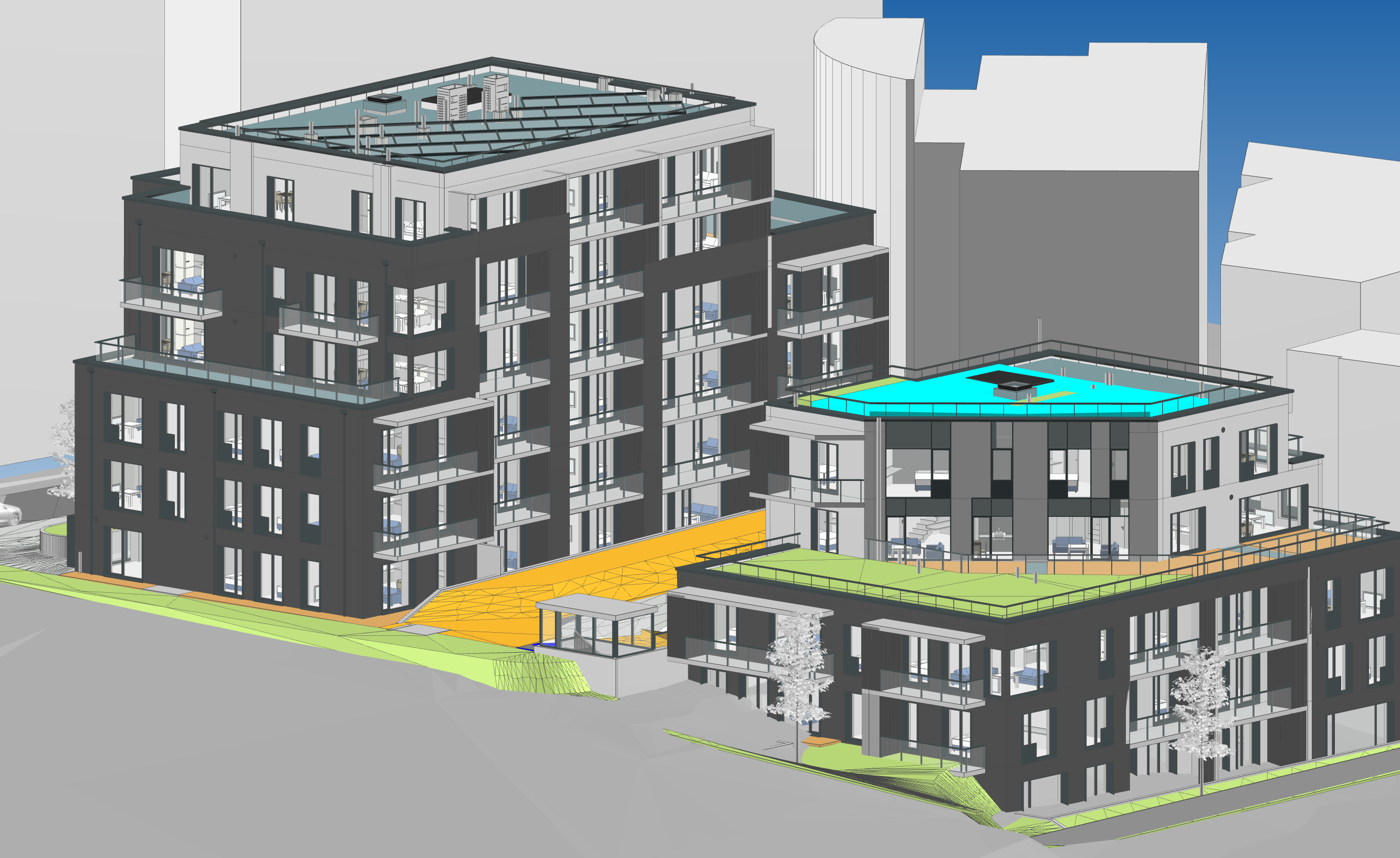

Real estate properties
Residential building – 12 000 m2

PHASE

Structural design, detail design.
Precast concrete and steel frame assembly, general arrangements, shop drawings.

PROJECT DESCRIPTION

The structures of these residential buildings consist of a monolithic foundation and an underground parking lot, wall structures, columns, beams, floor slabs and purlins, all of which are prefabricated elements with a total height above the foundation of 17.45 m. When working on projects of this type, we pay special attention to local producers, the requirements of the producers of steel structures and prefabricated elements and their nomenclature, which subsequently allows us to correctly organize the logistics and deliver them to the construction site at the lowest cost.

SOFTWARE: TEKLA STRUCTURES, TEKLA MODEL SHARING

PROJECT INFORMATION

Designing the office building with underground and surface parking.

Office building – 5 000 m2.

PROJECT INFORMATION

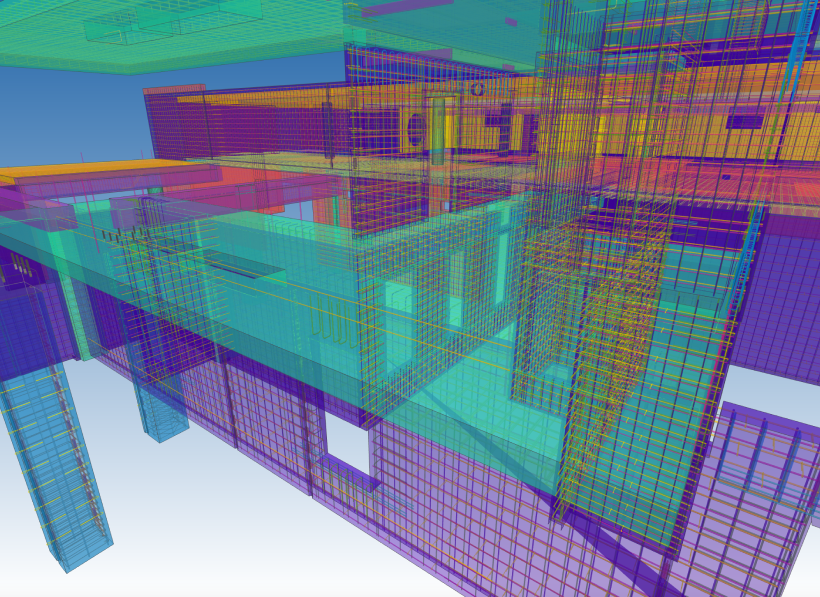

Development of structural part of the reinforced concrete monolithic and precast structure, working drawings for manufacturing.
